cyclone SA Equip Rental

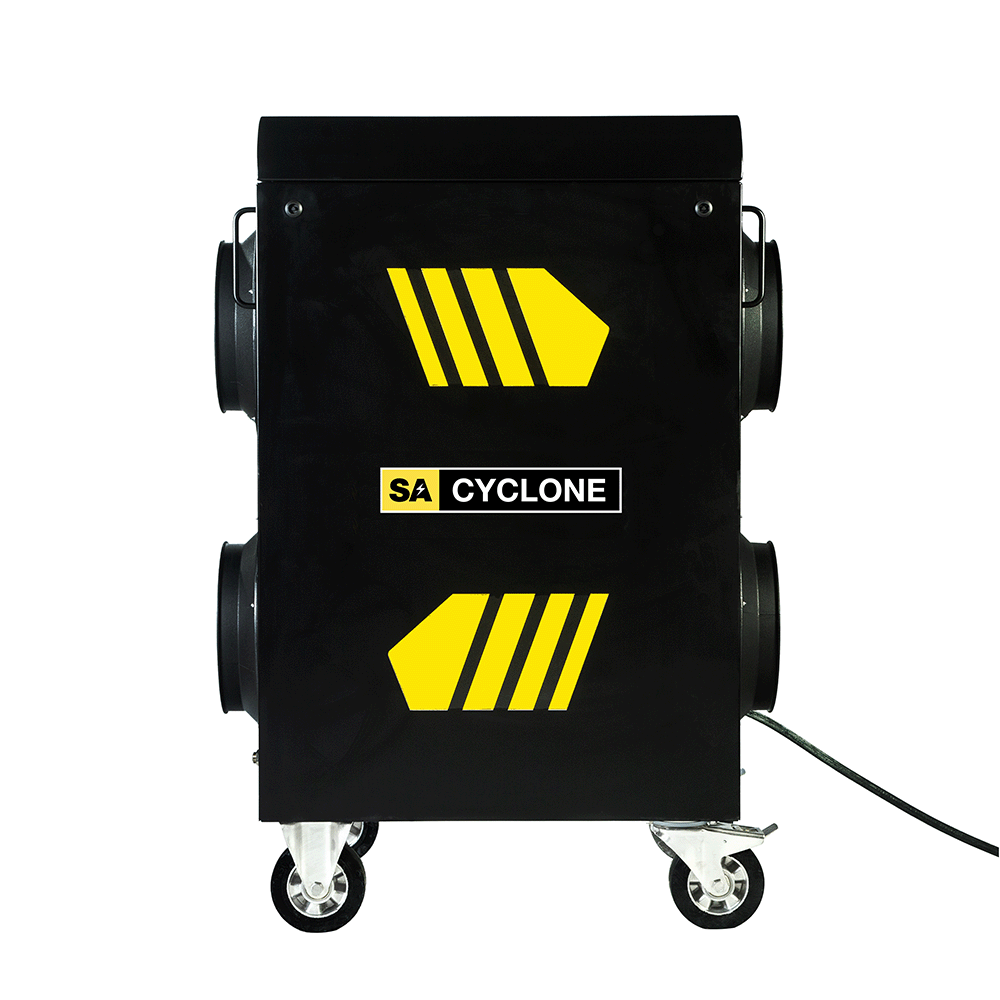

EX AIR CONDITIONER

PRODUCT CODE : SAAC11440

ATEX IECEx UKEX zone-1-2 zone-21-22 madeinuk

THE SA CYCLONE EX Air Conditioner is a truly ground-breaking product, proving highly effective cooling for hazardous areas in a mobile, compact unit. ATEX, IECEx and UKEX Certified for Zones...

Read More
Share This:

Hire/Purchase

Total options:
Order total:
- +
Add to quote

Downloads

  • DATASHEET
  • ATEX CERTIFICATE
  • IECEX CERTIFICATE
  • UKEX CERTIFICATE
SKU: SAAC11440 Categories: , , , ,

THE SA CYCLONE EX Air Conditioner is a truly ground-breaking product, proving highly effective cooling for hazardous areas in a mobile, compact unit. ATEX, IECEx and UKEX Certified for Zones 1 & 2 (gas) and Zones 21 & 22 (dust), the Air Conditioner is designed and built to withstand the harshest conditions.

The ‘plug & play’ design enables rapid deployment wherever effective cooling is required. Hosting optimised refrigeration design and our most advanced solid state electronic control system, our 440V Air Conditioner allows you to meet climate requirements effectively and maintain optimum working conditions in ambient temperatures as high as 50°C.

THE SA CYCLONE EX Air Conditioner is a truly ground-breaking product, proving highly effective cooling for hazardous areas in a mobile, compact unit. ATEX, IECEx and UKEX Certified for Zones 1 & 2 (gas) and Zones 21 & 22 (dust), the Air Conditioner is designed and built to withstand the harshest conditions. The ‘plug & play’ design enables rapid deployment wherever effective cooling is required. Hosting optimised refrigeration design and our most advanced solid state electronic control system, our 440V Air Conditioner allows you to meet climate requirements effectively and maintain optimum working conditions in ambient temperatures as high as 50°C.
CERTIFICATION
Ex II 2 G D
Ex db eb ib mb pb IIB T4 Gb
db ib mb tb pb IIIC T135°C Db
OPERATING TEMPERATURE
-20°C to +50°C
COOLING POWER
11KW
INGRESS PROTECTION
IP65
PROTECTION
Refrigerant overpressure protection
Refrigerant leak protection
Coil frost protection
Tipping protection
Vibration protection
Motor overcurrent protection
Phase rotation protection
DIMENSIONS
800mm(l) x 700mm(w) x 1290mm(h) – not including duct adapters
WEIGHT
200kg exc. cable
CURRENT DRAW @ 440VAC
Start Up: 22A Run: 15A
FREE AIRFLOW (COLD)
690m³/h (406cfm) @ 50Hz
DUCTING SIZE
20cm, 30cm, or 40cm
3 PHASE SUPPLY
3Ph+E or 3Ph+N+E
TYPICAL TEMPERATURE DROP
Approx. 10-20°C below ambient
NOISE LEVEL @ 1M
83dBa
CABLE LENGTH
10m (or as required)
PATENT PROTECTED
GB2621553
Check EX Certified for Zones 1 & 2 (gas) and Zones 21 & 22 (dust)
Check Fully EX tested and certified as complete system
Check 11kW Output at 400V
Check Will operate in temperatures up to 50°C
Check IP65 Rated
Check Typical cooled area 240m³
Check Cooled airflow of 690m³/hour
Check Advanced solid state electronic control system
Check Marine grade materials
Check Optimised refrigeration design
Check Can be used in multiple configurations
Check Offshore platforms
Check Oil refineries
Check Vessels and tanks
Check Confined spaces
Check Chemical plants
Check Shipbuilding and repair
Check Utilities
